| Place of Origin: | Beijing, China |
| Brand Name: | ADSS |
| Certification: | CE |
| Model Number: | FG2014 |
| Minimum Order Quantity: | 1 piece/pieces |
|---|---|
| Price: | negotiation |
| Packaging Details: | Alluminium alloy case for Alexandrite long pulse 1064nm Permanent Laser use |
| Delivery Time: | 1-7days |
| Payment Terms: | L/C D/A D/P T/T |
| Supply Ability: | 1000 Piece/Pieces per Month |
| Name: | Nd Yag Tattoo Removal Machine | Feature: | Hair Removal, Blood Vessels Removal, Pore Remover, Pigment Removal, Pigmentation Correctors, Skin Tightening, Whitening, Skin Rejuvenation, Dark Circles, Wrinkle Remover, Acne Treatment, Anti-Hair Removal |
|---|---|---|---|
| Type: | Laser | Product Name: | Alexandrite Long Pulse 1064nm Permanent Laser |
| After-sales Service Provided: | Free Spare Parts, Online Support, Video Technical Support, Other | Voltage: | 110V/220V 50-60Hz |
| Wavelength: | 1064nm | Function: | Hair Removal, Vascular Removal |
| Laser Type: | Nd: Yag Laser | Cooling System: | Air + Water + Semiconductor Module |
| High Light: | Nd Yag Tattoo Removal Machine,1064nm Laser Skin Rejuvenation Machine,Q Switch Nd Yag Laser Equipment |
||

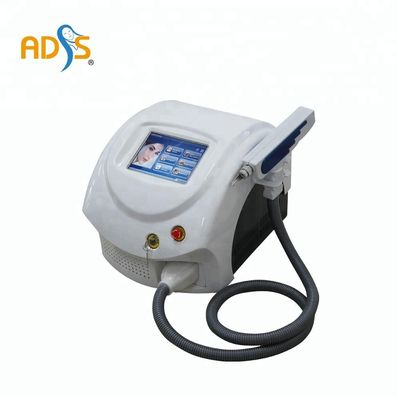

2023 Skin Rejuvenation Q Switched Nd Yag Laser Tattoo Removal Pigmentation Removal Machine
| Name | 2023 Skin Rejuvenation Q Switched Nd Yag Laser Tattoo Removal Pigmentation Removal Machine | |||
| Wavelength | 1064/532nm | |||
| Operate mode | Q-switched mode & SPT mode | |||
| Beam profile | Flat-top mode | |||
| Pulse width | ≤6ns (Q-switched mode) 300us (SPT mode) | |||
| Pulse energy | Q-switched | Q-switched | SPT mode | |
| 1064nm | 532nm | 1064nm long pulse | ||
| Double pulse | 100mJ-2600mJ | 50mJ-1300mJ | 100mJ-2600mJ | |
| Single pulse | 100mJ-1300mJ | 50mJ-650mJ | 100mJ-1300mJ | |
| Energy calibration | External & self-resoration | |||
| Spot size | 2-10mm | |||
| Reprtition rate | Max.10Hz(1064nm,532nm,STP mode) | |||
| Optical delivery | Articulated arm | |||
| Pulse width (ns) | 6ns | |||
| Aiming beam | Diode 655nm(Red),brightness adjustable | |||
| Cooling system | Advanced Air & Water cooling system & semiconductor cooling | |||
| Power supply | AC 110V or 240V | |||
Q-switched Nd:YAG lasers are commonly used in dermatology for tattoo removal, pigmentation removal, and skin rejuvenation. The short pulses of high-intensity light can break up the ink particles or pigments in the skin without damaging the surrounding tissue. They are also used in ophthalmology for the treatment of glaucoma.
Working Theory
Nd:YAG laser energy is selectively absorbed by the deeper levels of the dermis and allows for treatment of deeper vascular lesions such as telangiectasias, hemangiomas and leg veins.The laser energy is delivered using long pulses which are converted into heat in the tissue. The heat impacts the vasculature of the lesions. In addition, the Nd:YAG Laser can treat at a more superficial level; by heating the subcutaneous skin (in a non-ablative manner) it stimulates neocollagenesis which improves the appearance of facial wrinkles.
In addition to the Q-switched Nd:YAG laser, other types of lasers that can be used for tattoo removal include the Alexandrite laser and the Ruby laser. However, the Q-switched Nd:YAG laser is the most commonly used due to its effectiveness and versatility.
Overall, tattoo removal machines are effective tools for removing unwanted tattoos, but they should only be operated by trained professionals to ensure safe and effective treatment.
•Hair removal for all skin types
•Vascular Lesion
•Wrinkle Removal
•Hemangioma
•Nevus flammeus
Features and components of an Nd:YAG laser machine:
1. Laser medium: The Nd:YAG laser machine uses a solid-state crystal made of neodymium-doped yttrium aluminum garnet (Nd:YAG) as the laser medium. When the crystal is energized, it emits light at a specific wavelength that can be used for various medical and aesthetic applications, including tattoo removal.
2. Laser head: The laser head of an Nd:YAG laser machine contains the crystal, as well as other components such as mirrors and lenses that help focus and direct the laser beam.
3. Delivery system: The laser beam is delivered to the skin through a handpiece or fiber optic cable. The handpiece may have different tips or attachments depending on the specific application, such as a spot size adapter for tattoo removal.
4. Cooling system: Nd:YAG laser machines typically have some type of cooling system, such as a built-in air or water cooler, to prevent the laser from overheating and to minimize discomfort for the patient.
5. Controls and settings: The Nd:YAG laser machine may have various controls and settings that allow the provider to adjust the laser energy, pulse duration, and other parameters to optimize the treatment for each patient's unique needs.
