| Place of Origin: | Beijing, China |
| Brand Name: | ADSS |
| Certification: | CE |
| Model Number: | FG2014 |
| Minimum Order Quantity: | 1 piece/pieces |
|---|---|
| Price: | negotiation |
| Packaging Details: | Alluminium alloy case for Alexandrite long pulse 1064nm Permanent Laser use |
| Delivery Time: | 1-7days |
| Payment Terms: | L/C D/A D/P T/T |
| Supply Ability: | 1000 Piece/Pieces per Month |
| Name: | Laser Tattoo Removal Machine | Product Name: | Alexandrite Long Pulse 1064nm Permanent Laser |
|---|---|---|---|
| Wavelength: | 1064nm | Function: | Hair Removal , Vascular Removal |
| Laser Type: | Nd: Yag Laser | Cooling System: | Air + Water + Semiconductor Module |
| Type: | Laser | Feature: | Hair Removal, Blood Vessels Removal, Pore Remover, Pigment Removal, Pigmentation Correctors, Skin Tightening, Whitening, Skin Rejuvenation, Dark Circles, Wrinkle Remover, Acne Treatment, Anti-Hair Removal |
| Voltage: | 110V/220V 50-60Hz | After-sales Service Provided: | Free Spare Parts, Online Support, Video Technical Support, Other |
| High Light: | ADSS Picosecond Laser Machine,Tattoo Removal Picosecond Laser Machine,Pico Laser Machine 1064nm |
||

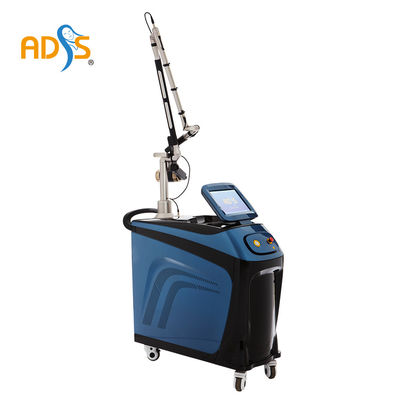

Hot Pick Tattoo Removal Q Switched Nd Yag Laser 1064nm 532nm For Laser Tattoo Removal Machine
| Name | Hot Pick Tattoo Removal Q Switched Nd Yag Laser 1064nm532nm For Laser Tattoo Removal Machine | |||
| Wavelength | 1064/532nm | |||
| Operate mode | Q-switched mode & SPT mode | |||
| Beam profile | Flat-top mode | |||
| Pulse width | ≤6ns (Q-switched mode) 300us (SPT mode) | |||
| Pulse energy | Q-switched | Q-switched | SPT mode | |
| 1064nm | 532nm | 1064nm long pulse | ||
| Double pulse | 100mJ-2600mJ | 50mJ-1300mJ | 100mJ-2600mJ | |
| Single pulse | 100mJ-1300mJ | 50mJ-650mJ | 100mJ-1300mJ | |
| Energy calibration | External & self-resoration | |||
| Spot size | 2-10mm | |||
| Reprtition rate | Max.10Hz(1064nm,532nm,STP mode) | |||
| Optical delivery | Articulated arm | |||
| Pulse width (ns) | 6ns | |||
| Aiming beam | Diode 655nm(Red),brightness adjustable | |||
| Cooling system | Advanced Air & Water cooling system & semiconductor cooling | |||
| Power supply | AC 110V or 240V | |||
Tattoo removal machines typically have a range of settings that allow the operator to adjust the laser's wavelength, pulse duration, and intensity to best suit the individual patient's skin type and tattoo pigment. The treatment is typically performed over a series of sessions, spaced several weeks apart, to allow the body time to eliminate the fragmented ink particles.
In addition to the Q-switched Nd:YAG laser, other types of lasers that can be used for tattoo removal include the Alexandrite laser and the Ruby laser. However, the Q-switched Nd:YAG laser is the most commonly used due to its effectiveness and versatility.
Working Theory
Nd:YAG laser energy is selectively absorbed by the deeper levels of the dermis and allows for treatment of deeper vascular lesions such as telangiectasias, hemangiomas and leg veins.The laser energy is delivered using long pulses which are converted into heat in the tissue. The heat impacts the vasculature of the lesions. In addition, the Nd:YAG Laser can treat at a more superficial level; by heating the subcutaneous skin (in a non-ablative manner) it stimulates neocollagenesis which improves the appearance of facial wrinkles.
In addition to the Q-switched Nd:YAG laser, other types of lasers that can be used for tattoo removal include the Alexandrite laser and the Ruby laser. However, the Q-switched Nd:YAG laser is the most commonly used due to its effectiveness and versatility.
Overall, tattoo removal machines are effective tools for removing unwanted tattoos, but they should only be operated by trained professionals to ensure safe and effective treatment.
• Hair removal for all skin types
• Vascular Lesion
• Wrinkle Removal
• Hemangioma
• Nevus flammeus
Features and components of an Nd:YAG laser machine:
1. Laser medium: The Nd:YAG laser machine uses a solid-state crystal made of neodymium-doped yttrium aluminum garnet (Nd:YAG) as the laser medium. When the crystal is energized, it emits light at a specific wavelength that can be used for various medical and aesthetic applications, including tattoo removal.
2. Laser head: The laser head of an Nd:YAG laser machine contains the crystal, as well as other components such as mirrors and lenses that help focus and direct the laser beam.
3. Delivery system: The laser beam is delivered to the skin through a handpiece or fiber optic cable. The handpiece may have different tips or attachments depending on the specific application, such as a spot size adapter for tattoo removal.
4. Cooling system: Nd:YAG laser machines typically have some type of cooling system, such as a built-in air or water cooler, to prevent the laser from overheating and to minimize discomfort for the patient.
5. Controls and settings: The Nd:YAG laser machine may have various controls and settings that allow the provider to adjust the laser energy, pulse duration, and other parameters to optimize the treatment for each patient's unique needs.
Beijing ADSS Development Co., Ltd.(ADSS) regards quality as the lifeblood of the group and strictly controls the product quality and processing. As of now, ADSS has passed ISO13485 international quality management system certification and obtained a number of product certifications such as CE, TGA and FDA. ADSS invariably implements the modern management system, supervises and inspects work according to the strict evaluation mechanism, guaranteeing the reliability and durability of products, fundamentally setting up the concept of quality first. Simultaneously, it is equipped with professional testing laboratories, dust-free workshops, and high and low temperature laboratories to detect the safety and electromagnetic compatibility of electronic equipment. ADSS can completely solve various types of laser problems independently and ensure that all products are 100% qualified, safe, and effective. In line with international certification standards, strict quality management is carried out in all links from research and development, production, assembly, and testing to packaging.
We usually ship the machine to customer by plane like DHL, UPS, TNT, FedEx .Usually it will take about 4-7 working time to come to your door .
Q1. Is it a reliable company?
ADSS reply: Beijing ADSS Development Co., Ltd. Is established in 2005, engaged in R&D, sales and after-sales services of aesthetic devices & medical laser equipments, even part of IT area and Real estate sector. We have a professional team integrating with optics, machinery, electricity and medicine, to keep us ahead on in this field. ADSS factory covers 160000M2. All provide ADSS is a reliable manufacturer and suppliers.
Q2: What about the delivery?
ADSS reply: we can offer the door to door services by air or by sea just depend on your actual request. Such as DHL, UPS, TNT, FEDEX… by air; and the sea transportations.
Q3: What’s the delivery time?
ADSS reply: 3-7 days.
Q4: What’s package?
ADSS reply: strong and beautiful aluminum alloy case/carton case/wooden case.
Q5: Do you have any timely technology supports?
ADSS reply: we have a professional technology supporting team for your timely services. We prepare the technical documents for you, also you can contact us by telephone, webcam, online chat (googletalk, MSN, skype, yahoo…).
Q6: What’s the payment method?
ADSS reply: T/T, WESTERN UNION, MONEY GRAM, ESCROW, PAYPAL…
Q7: If the machines broken during the shipment, will you support us?
ADSS reply: generally our customer will purchase the insurance before shipment, avoid any money lost from rough transportation. ADSS will help you to solve the claims with the insurance companies to collect your money back in time.
Q8: do you take part in the world exhibition every year ?
ADSS Reply : yes, we took part in world-renowned exhibitions each year from 2007, such as hold in Moscow, Japan, Italy, Germany, Dubai, Australia, Mexico, Hong Kong etc…
Q9: Product series?
808nm diode laser for permanent hair removal
high intensity focused ultrasound
Fractional thermal RF
1540nm Erbium glass laser
Co2 fractional laser
Cryo fat freezing body contouring
VS+ body shaping
635nm diode laser slimming
Ultrasonic cavitation slimming
VE light (IPL+RF) system
IPL
RF
ND YAG laser tattoo removal
PDT aesthetics
